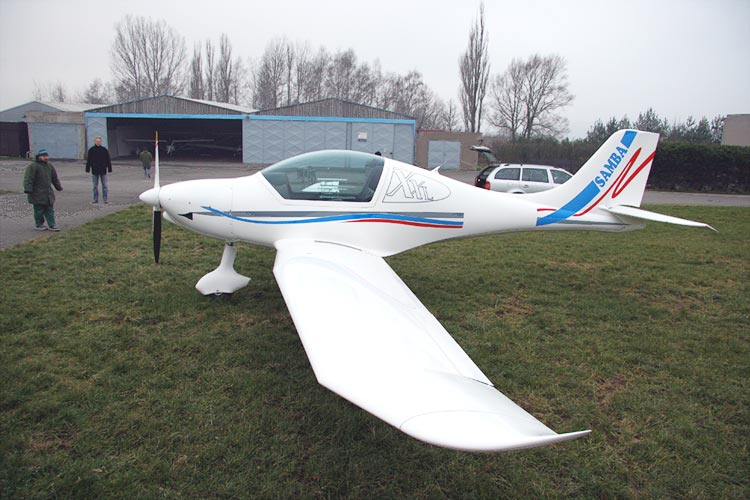

Samba XXL UFM 10

Samba XXL is a perfect mix of manoeuverability and pure joy of flight

Samba XXL offers excellent flight characteristics

The Samba XXL is based on successful plane UFM-10 Samba. Excellent flight characteristics were preserved while the space for pilots was extended. That is why Samba XXL is ideal for travelling, training and towing.

Brief technical description

The ultra-light plane Samba XXL is a double-seat, single-engine, self-carrying low-wing aeroplane with crew members sitting one next to each other. It is all-composite. The fuselage is made mainly of carbon laminate with local sandwich construction. The wing is of sandwich construction while the flanges are made of carbon rowing. The wing is equipped with a lifting flap with a slot. The flap positions are 20° and 45°. The tail surfaces are of classic layout. The carriage is three-wheel with controlled front wheel and braked min wheels.

The main carriage legs consist of a laminate spring. Integrated fuel tanks (2 x 50 litres) are located in the wing leading edge. The plane may be equipped with a towing device for sail planes towing with maximal climbing weight of 650 kg. The Samba XXL may be equipped with removable wing extensions.

Full technical description

Samba XXL description in English (Adobe Reader PDF, 256 kB)

Price

Price SAMBA XXL with Rotax 912 UL (80 HP) - 54.800 EUR/EXW (netto)

Full Pricelist 2007 (Lambada, Samba, Samba XXL aircrafts - valid since 2006.09.01)
urbanair2006_pricelist.xls (MS Excel, *.xls, 689 kB)

Certificates

certificate samba xxl
certificate samba xxl
certificate samba xxl
France Czech Republic Germany

Gallery

samba xxl samba xxl samba xxl samba xxl samba xxl
samba xxl samba xxl samba xxl samba xxl samba xxl
samba xxl samba xxl samba xxl samba xxl samba xxl
samba xxl samba xxl samba xxl samba xxl samba xxl
samba xxl samba xxl samba xxl samba xxl samba xxl
samba xxl samba xxl samba xxl samba xxl
samba xxl
samba xxl
samba xxl samba xxl samba xxl

Samba XXL with 80 HP Jabiru engine exported to Norway

samba xxl samba xxl

Samba XXL with 125 HP Jabiru engine during installation
